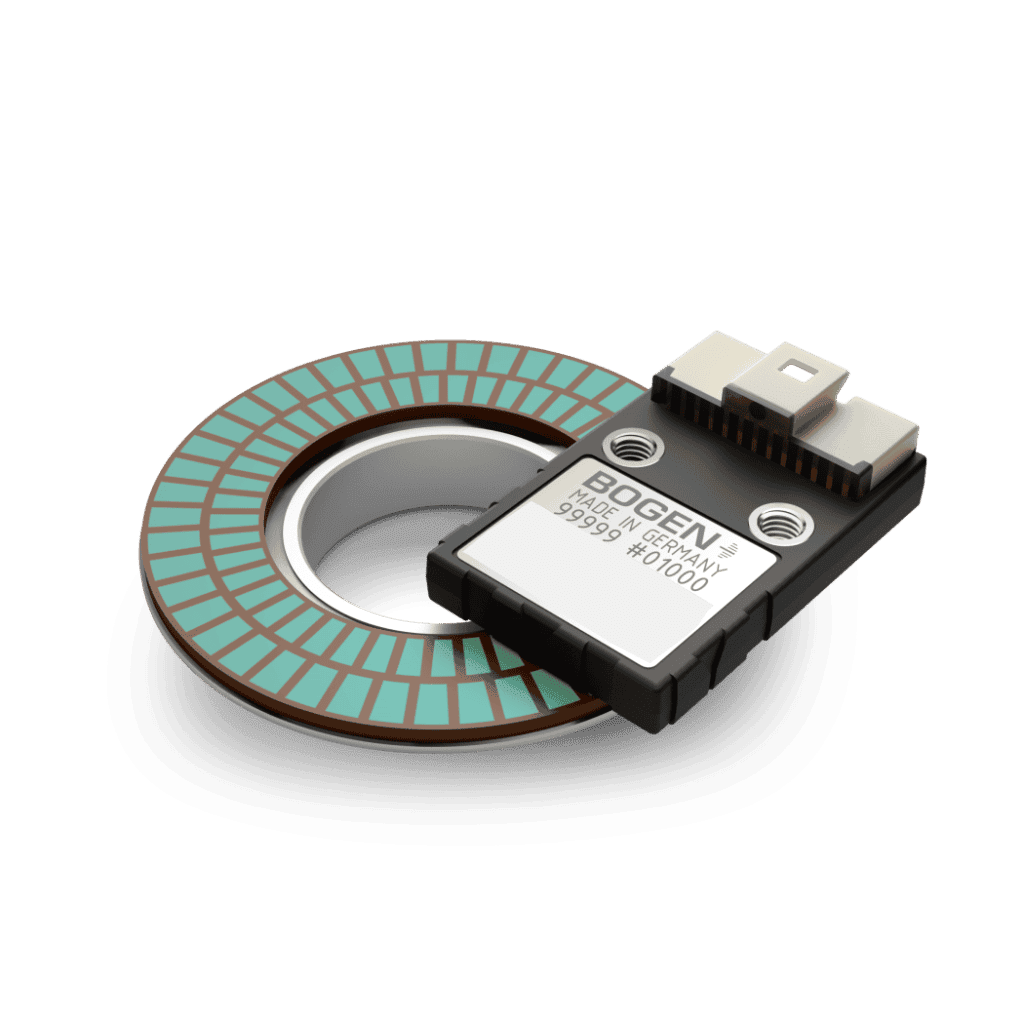

The AKS16-MT Absolute Magnetic Sensing Head provides high-resolution absolute position feedback for industrial automation, robotics, servo systems, and precision motion control. Designed for rotary and radial measurements up to 59 mm in diameter, this compact, contactless sensing head delivers exceptional accuracy while fitting easily into space-constrained applications.
Using advanced magnetic sensing technology, the AKS16-MT achieves 19- or 20-bit single-turn resolution and supports multiturn measurements up to 18 bits. As a result, it provides reliable absolute position data immediately after power-up, improving machine efficiency and eliminating the need for homing.
The sensing head supports both BiSS-C and SSI communication interfaces, enabling seamless integration with PLCs, servo drives, and industrial motion controllers. In addition, its compact design weighs only approximately 2.5 g, making it an excellent choice for lightweight robotic joints, compact actuators, and precision automation equipment.
Designed for demanding industrial environments, the AKS16-MT operates from 5 VDC ±5%, withstands storage temperatures from -40°C to +80°C, and supports rotation speeds of up to 12,000 rpm (19-bit version). Consequently, it delivers reliable, high-speed performance across a wide range of motion control applications.
Key Features
- Absolute magnetic sensing head
- Contactless magnetic position measurement
- Rotary and radial measurements up to 59 mm diameter
- Single-turn resolution: 19 or 20 bits
- Multiturn resolution: Up to 18 bits
- Interfaces:
- BiSS-C
- SSI
- Compact and lightweight design (approximately 2.5 g)
- Ideal for compact installations
- High accuracy and repeatability
- Optimized for robotics and industrial automation
Technical Specifications
| Feature | Specification |
|---|---|
| Technology | Magnetic Absolute |
| Measurement Type | Rotary and Radial |
| Measurement Diameter | Up to 59 mm |
| Single-Turn Resolution | 19 or 20 bit |
| Multiturn Resolution | Up to 18 bit |
| Interfaces | BiSS-C, SSI |
| Supply Voltage | 5 VDC ±5% |
| Rotation Speed | Up to 12,000 rpm (19 bit), up to 6,000 rpm (20 bit) |
| Storage Temperature | -40°C to +80°C |
| Weight | Approx. 2.5 g |
Applications
The AKS16-MT is ideal for:
- Industrial automation
- Robotics
- Servo motor feedback
- Direct-drive motors
- Precision positioning systems
- Rotary tables
- Packaging machinery
- Semiconductor equipment
- Medical devices
- OEM motion control systems
Compact Absolute Magnetic Feedback for Precision Motion Control
The AKS16-MT Absolute Magnetic Sensing Head combines high-resolution magnetic sensing, BiSS-C and SSI communication, and a lightweight, compact design to deliver reliable absolute position feedback in demanding applications. With support for 19- and 20-bit resolution, multiturn capability, and rotation speeds up to 12,000 rpm, it is an excellent solution for robotics, industrial automation, and advanced motion control systems.
