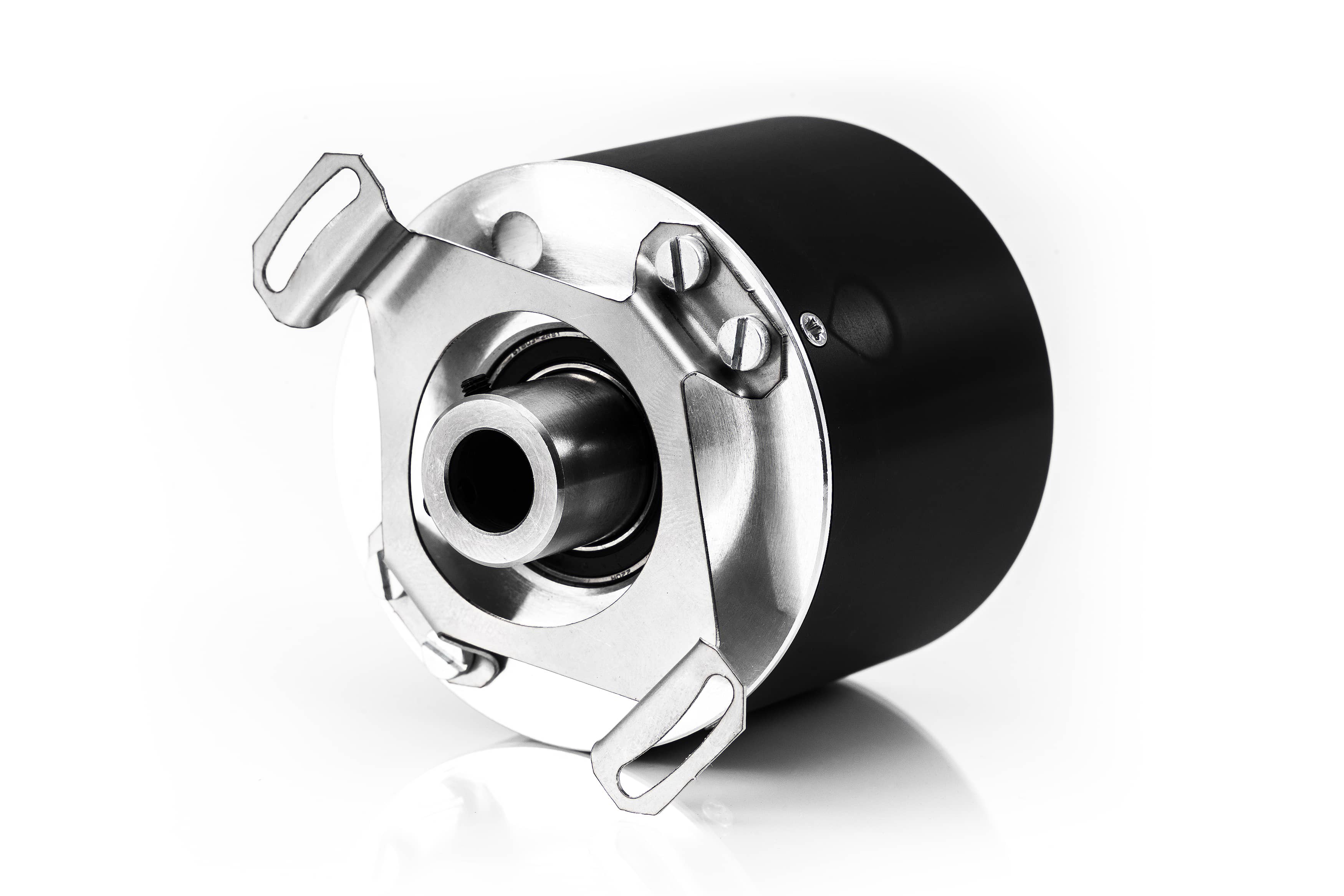

AK36HME1 optical absolute encoder
Ø36mm absolute encoder
AK36HME1 is an optical absolute encoder that is available in singleturn and multiturn (battery buffered) versions. The encoder has up to 21 bit resolution in singleturn option and up to 40 bit resolution when using the multiturn version. It outputs the signal through BiSS C or SSI interface and has a blind hollow shaft.
Mechanical data
| Maximum shaft speed | 10,000 rpm |
| Maximum shaft load | axial: 5 N radial: 0.03 N |
| Starting torque 20°C temperature | ≤ 0.002 Nm |
| Rotor moment of inertia | < 2 cm² |
| Protection (IEC 529) | standard: IP54 optional: IP64 |
| Maximum weight without cable | 0.1 kg |
| Operating temperature | singleturn: -20…+80°C |
| multiturn: -10…+70°C | |
| Storage temperature | singleturn: -30…+90°C |
| multiturn: -20…+80°C | |
| Maximum humidity | 98% |
| Permissible vibration (55 to 2000 Hz) | ≤ 100 m/s² |
| Permissible shock (11 ms) | ≤ 300 m/s² |
