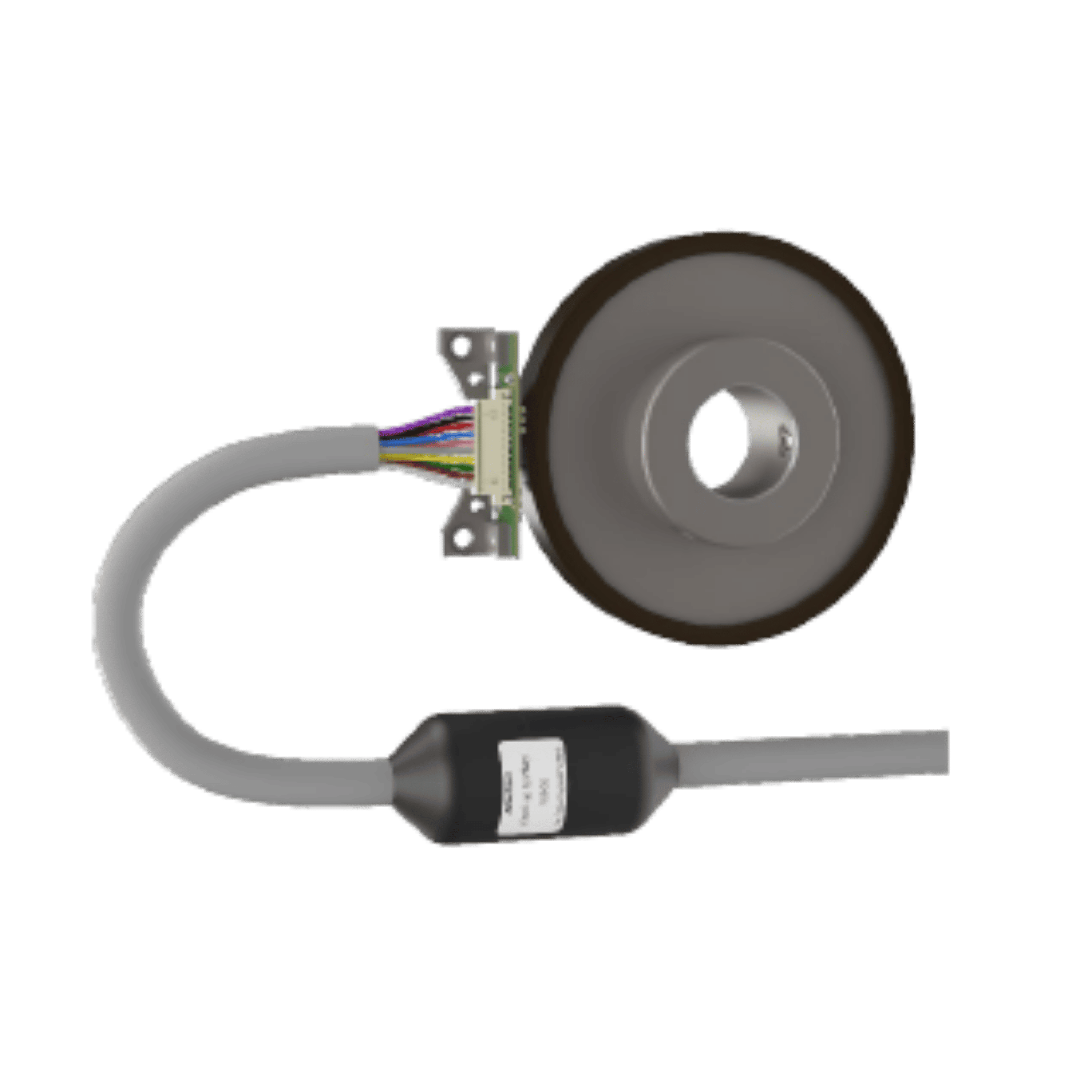

Designed as a rotary and linear magnetic kit encoder, the IMEA provides absolute position feedback for servo motors, torque motors, direct drives, and motor-gearbox combinations. Its flexible design includes a magnetic hub or scale combined with a sensor head, allowing quick installation even in systems with large hollow shafts or tight mechanical constraints.

Key Technical Highlights

• Absolute multiturn feedback
  • Up to 262,144 steps per revolution (18-bit single-turn)
  • Up to 16,777,216 revolutions (24-bit multiturn)
• High dynamic performance
  • Rotation speeds up to 25,000 rpm
  • Linear speeds up to 50 m/s
• Industrial communication
  • Available with SSI or BiSS interfaces
• Built for harsh environments
  • Operating temperature: -40°C to +85°C
  • High vibration resistance up to 20g
• Long-term position retention
  • Battery-buffered absolute position memory
  • Backup lifetime options up to 24 years

Ideal Applications

The IMEA is particularly suited for:

• Industrial automation systems
• Robotics and servo axes
• Direct drive systems
• Precision positioning equipment
• Heavy-duty motion systems requiring robust feedback
