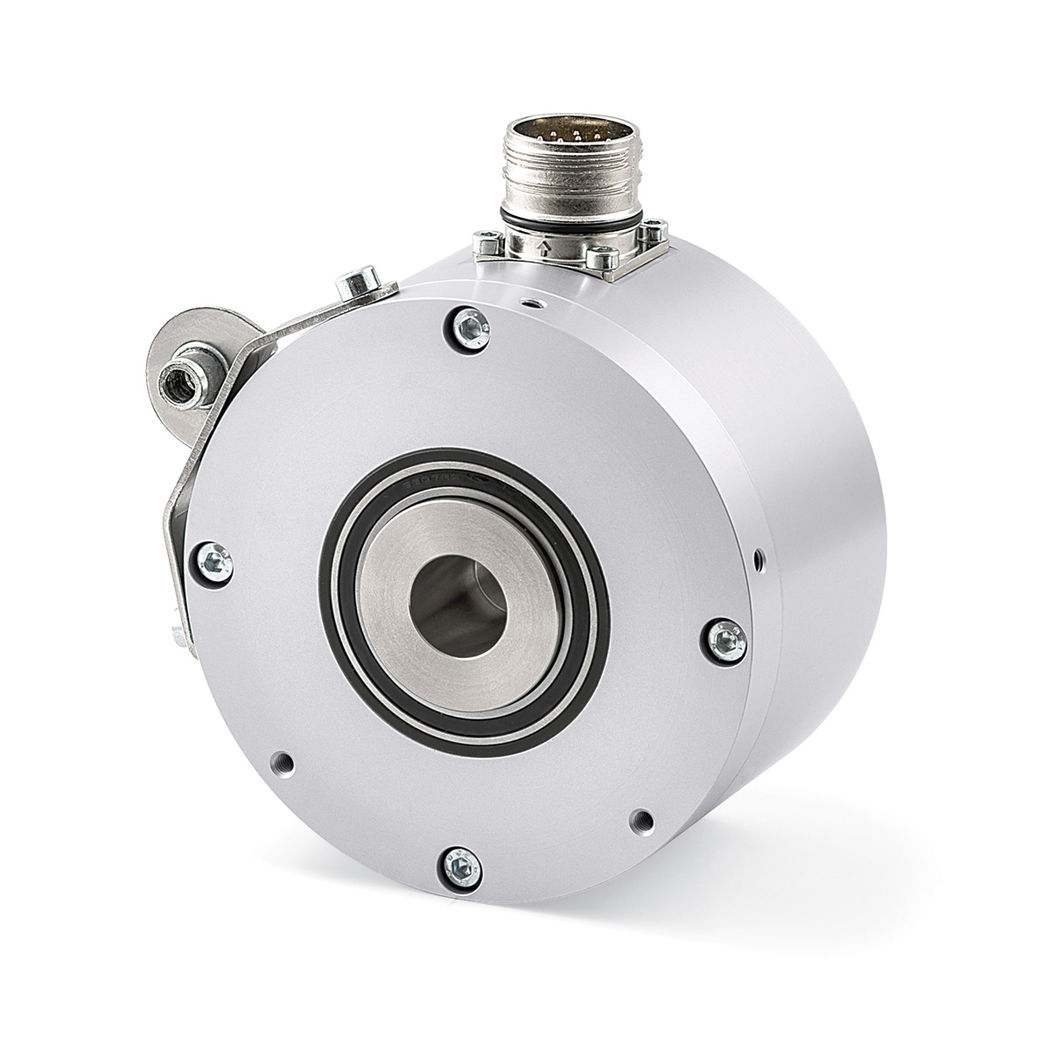

C100 Heavy-duty hollow shaft encoder
Heavy-duty hollow shaft encoder
Blind hollow or blind tapered shaft
Connections with terminal block
Electrically isolated shaft
Corrosion-resistant, robust housing
| Output circuit | Power Push-Pull; Power Line Driver |
| Dimension | Ø 100 mm |
| Shaft Ø max | 16 mm; 17 mm tapered |
| Connections | M23 connector, screw terminals or cable output |
| Resolution | 2500 PPR max. |
| Protection | IP65 |
| Shaft rotational speed | 6000 rpm |
| Application | Heavy-duty, wind energy |
| Options/Particularity | Salt mist resistant housing |
