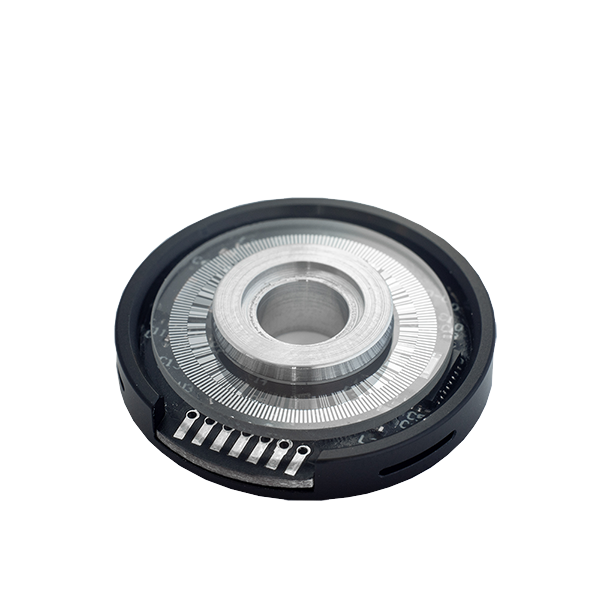

Ø25mm absolute encoder
This is a high-resolution, singleturn absolute encoder with a 20 Bit BISS-C interface. The encoder consists of several optical reflectance sensors arranged at an angle of 180 degrees to each other. This allows to eliminate mechanical errors in the application, such as the runout of the measured shaft, by using subsequent electronics.
Mechanical data
| Maximum shaft speed | 20 000 rpm |
| Protection (IEC 529) | IP00 |
| Maximum weight without cable | 0.01 kg |
| Operating temperature | -40…+70°C |
| Storage temperature | -40…+100°C |
| Maximum humidity (non-condensing) | 98% |
| Permissible vibration (55 to 2000 Hz) | ≤ 100 m/s² |
| Permissible shock (11 ms) | ≤ 400 m/s² |
