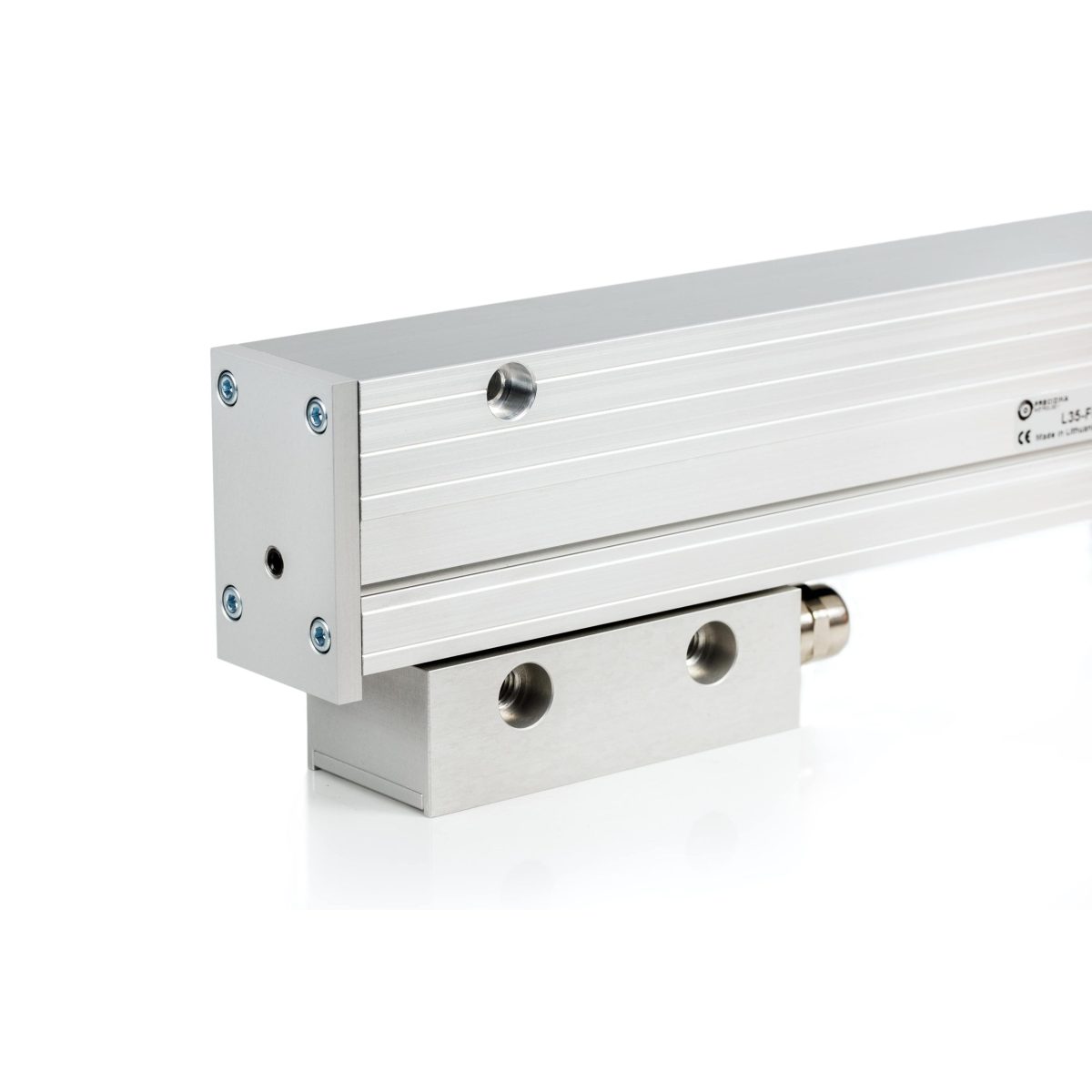

The L35 Optical Linear Encoder delivers high-precision incremental linear measurement for reliable and vibration-resistant position feedback. It supports measuring lengths up to 3,240 mm and achieves accuracy up to ±3 µm per meter, depending on the selected module length. The L35 series offers enhanced vibration resistance compared to the L18 series, making it ideal for precision motion control applications.
Its modular reference mark options, low required moving force, and IP64 protection with compressed air ensure consistent, robust performance in demanding industrial environments.
Technical Specifications – L35
| Parameter | Specification |
|---|---|
| Technology | Optical incremental linear encoder |
| Measuring Length (ML) | 70 – 3,240 mm (other lengths on request) |
| Accuracy per meter (20°C) | ±3 µm (optional), ±5 µm standard for ML ≤ 2,040 mm; ±10 µm for ML > 2,040 mm |
| Grating Period | 20 µm; 40 µm (optional) |
| Reference Marks (RI) | Standard: 35 mm / 45 mm from ML ends; Optional: one or multiple RIs at coded distances |
| Max Traversing Speed | 1 m/s (factor 1,2,5,10); 0.5 m/s (factor 25); 0.4 m/s (factor 50) |
| Required Moving Force | < 5 N (with sealing lips) |
| Protection (IEC 529) | IP64 (with compressed air) |
| Weight | 0.4 kg + 2.8 kg/m |
| Operating Temperature | 0…+50°C |
| Storage Temperature | –20…+70°C |
| Permissible Vibration (40–2000 Hz) | ≤ 150 m/s² |
| Permissible Shock (11 ms) | ≤ 300 m/s² |
