L23

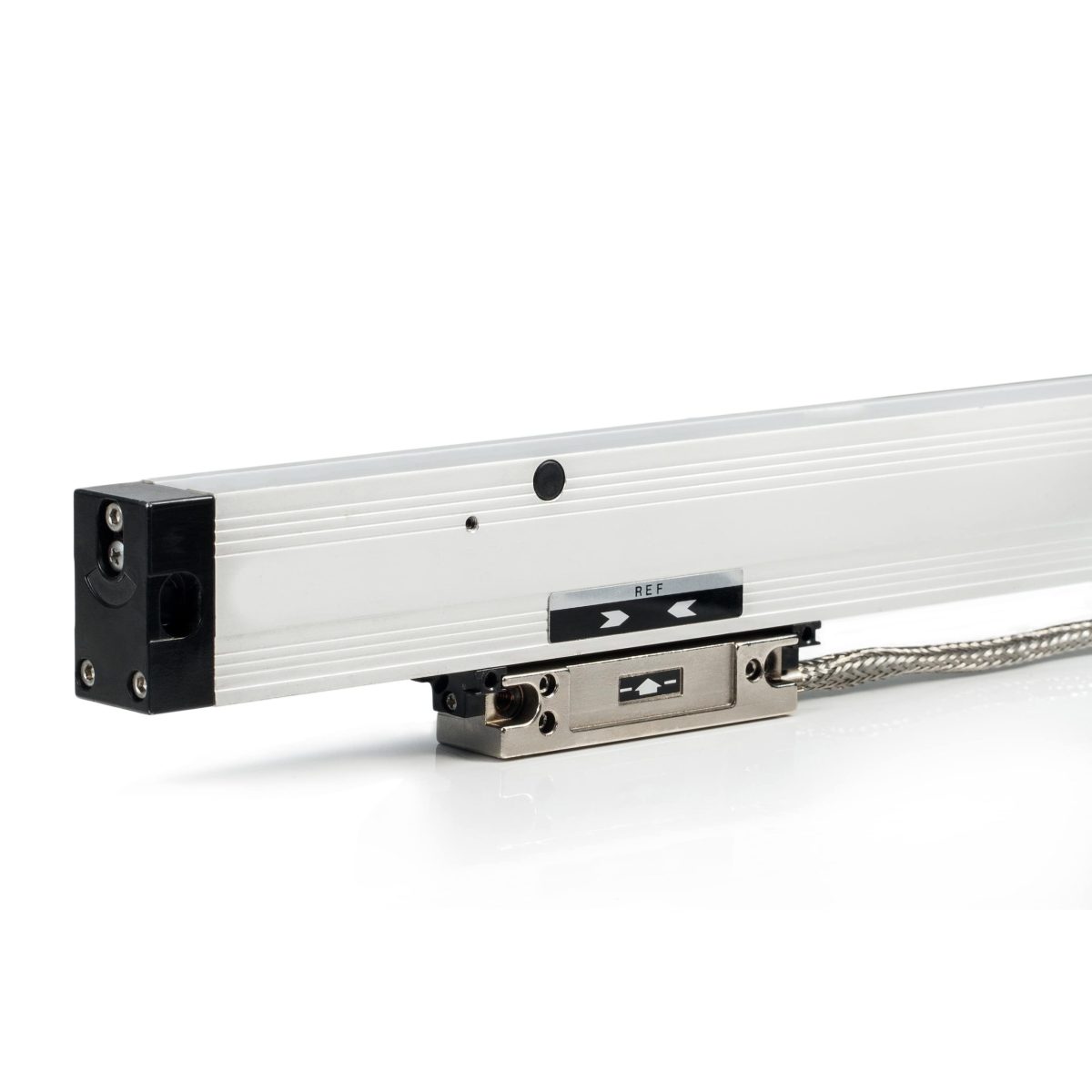

The L23 Optical Modular Linear Encoder provides high-precision incremental measurement across long travel distances, making it ideal for industrial automation and precision machinery. It measures lengths up to 20,000 mm and achieves accuracy up to ±3 µm per meter, while offering customization for even longer distances upon request.
In addition, the L23 offers modular reference mark options and a grating period of 20 µm, 40 µm, or 400 µm, which simplifies system integration. Furthermore, its low moving force requirements and IP64 protection with compressed air, combined with robust vibration and shock resistance, deliver consistent and reliable performance in demanding industrial environments.
Technical Specifications – L23
| Parameter | Specification |
|---|---|
| Technology | Optical modular incremental linear encoder |
| Measuring Length (ML) | 250 – 20,000 mm (longer lengths on request) |
| Accuracy per meter (20°C) | ±3 µm (optional), ±5 µm standard |
| Grating Period | 20 µm; 40 µm; 400 µm |
| Reference Marks (RI) | N: none, M: every 30 mm, P: optional custom placement |
| Max Traversing Speed | 120 m/min (T = 400 µm, resolution 100,50,10 µm); 80 m/min (T = 40 µm, 10.5 µm); 25 m/min (T = 40 µm, 1 µm); 60 m/min (T = 20 µm, 5 µm); 12 m/min (T = 20 µm, 0.5 µm) |
| Required Moving Force | < 4 N (with sealing lips) |
| Protection (IEC 529) | IP64 (with compressed air) |
| Weight | 0.4 kg + 2.8 kg/m |
| Operating Temperature | 0…+50°C |
| Storage Temperature | –20…+70°C |
| Permissible Vibration (40–2000 Hz) | ≤ 100 m/s² |
| Permissible Shock (11 ms) | ≤ 150 m/s² |
| Coefficient of Thermal Expansion | 10.6 × 10⁻⁶ /°C |
