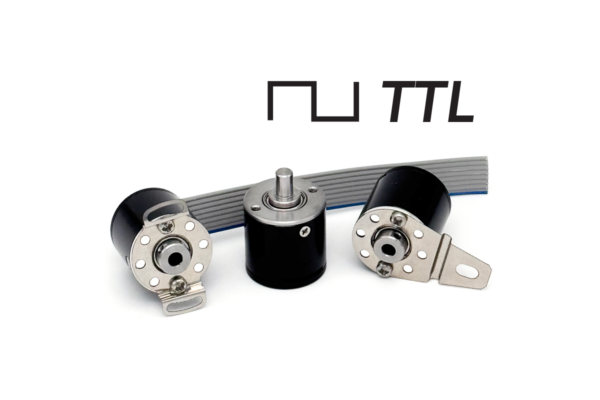

Ø19mm incremental encoder
A19 is a compact, incremental encoder designed for high-precision motion detection in applications with limited space
| Maximum shaft speed | 10 000 RPM |
| Moment of inertia | < 0.4 gcm2 |
| Starting torque | 5 x 10-4 Nm |
| Shaft load | Axial: 3 N Radial (at shaft end): 3 N |
| Vibrations (55 Hz to 2000 Hz) | ≤ 100 m/s2 |
| Shock (6 ms) | ≤ 300 m/s2 |
| Operating temperature | Standard: 0oC – 70oC Extended: -40oC – 100oC |
| Storage temperature | -40oC – 105oC |
| Ingress Protection (EN 60529) | IP50 |
| Mass (without cable) | Standard: < 15 g For extended temperature option with stainless steel: < 25 g |
