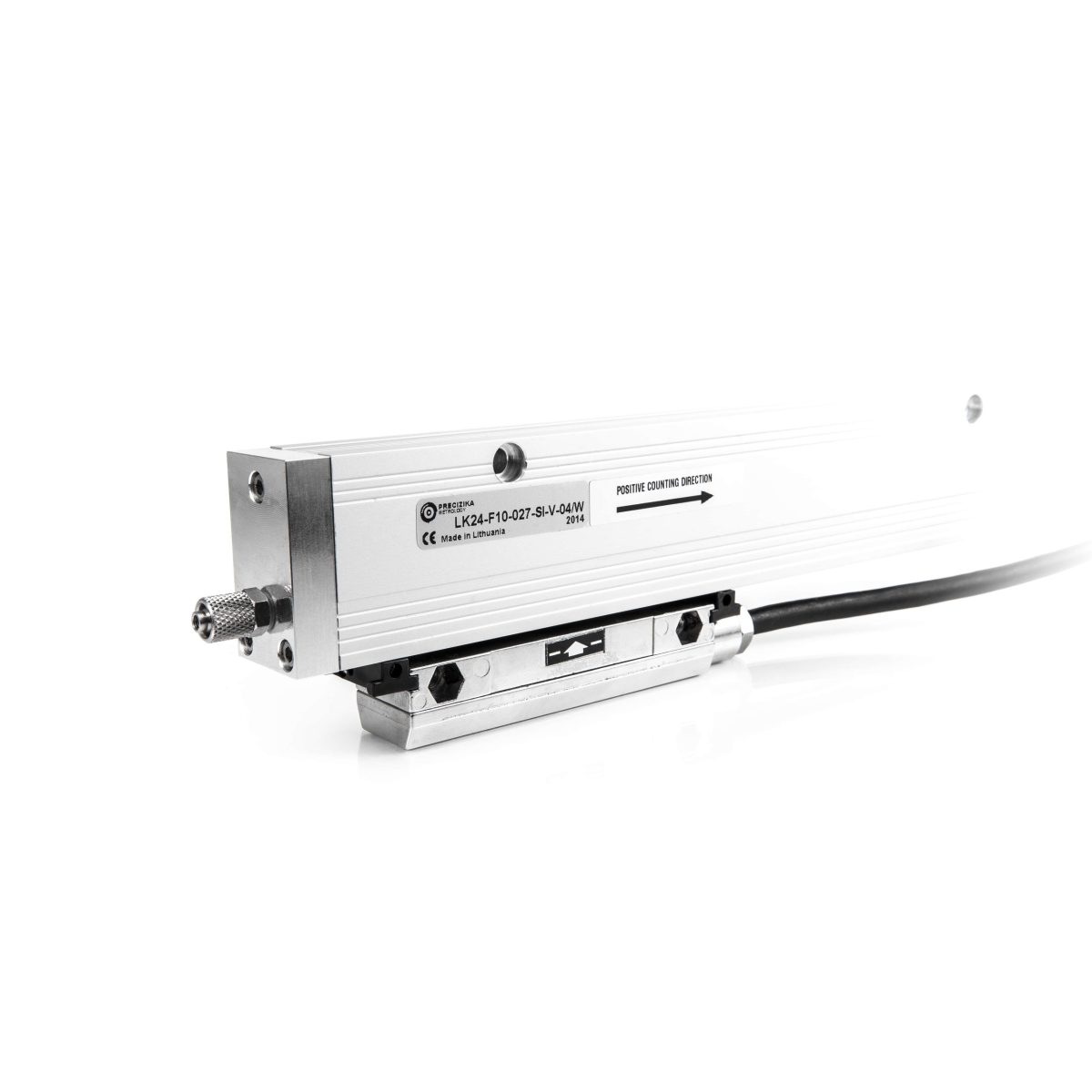

The LK24 Optical Absolute Linear Encoder delivers high-precision absolute position feedback for industrial automation and precision motion control applications. It measures lengths up to 3,240 mm and achieves accuracy up to ±1 µm per meter, depending on the customer-specified measuring length.
The LK24 supports SSI or BiSS serial interfaces and can include an optional 1 Vpp incremental track for versatile control system integration. Its low moving force, robust construction, and IP54/IP64 protection ensure reliable performance under harsh industrial conditions, including vibration, shock, and variable humidity.
Technical Specifications – LK24
| Parameter | Specification |
|---|---|
| Technology | Optical absolute linear encoder |
| Measuring Length (ML) | 70 – 3,240 mm (custom lengths available) |
| Accuracy per meter (20°C) | ±1 µm |
| Grating Pitch | 20 µm |
| Serial Interface | SSI / BiSS |
| Optional Incremental Track | 1 Vpp |
| Max Traversing Speed | 120 m/min |
| Max Acceleration | 30 m/s² |
| Required Moving Force | < 4 N (≤ 2.5 N on request) |
| Protection (IEC 529) | IP54 (without compressed air), IP64 (with compressed air) |
| Weight | 0.42 kg + 1.32 kg/m |
| Operating Temperature | 0…+50°C |
| Storage Temperature | –20…+70°C |
| Permissible Vibration (55–2000 Hz) | ≤ 100 m/s² |
| Permissible Shock (11 ms) | ≤ 150 m/s² |
| Permissible Humidity (Non-condensed) | 20…80% |
