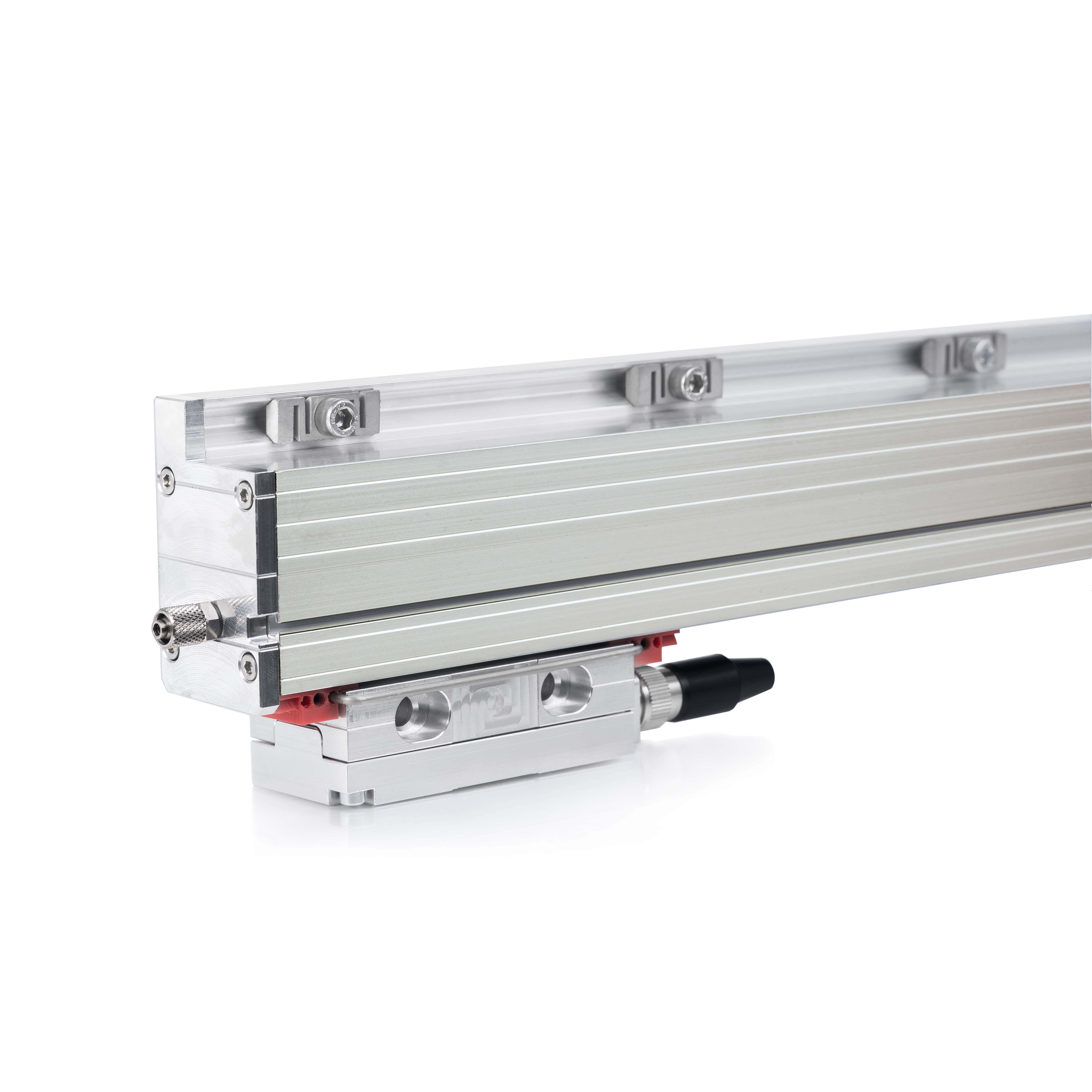

The L37 Optical Linear Encoder is a high-precision incremental linear encoder designed for reliable position measurement in compact and industrial automation systems. Its reversible reading head and reproducible thermal behavior ensure consistent, accurate feedback.
The L37 supports measuring lengths up to 3,240 mm, with accuracy grades up to ±3 µm per meter, making it ideal for precise motion control applications. Its modular reference mark options, low moving force, and IP64 protection with compressed air provide robust performance in harsh environments.
Technical Specifications – L37
| Parameter | Specification |
|---|---|
| Technology | Optical incremental linear encoder |
| Measuring Length (ML) | 70 – 3,240 mm (other lengths on request) |
| Accuracy per meter (20°C) | ±3 µm (optional), ±5 µm standard for ML ≤ 2,040 mm; ±10 µm for ML > 2,040 mm |
| Grating Period | 20 µm; 40 µm (optional) |
| Reference Marks (RI) | Standard: 35 mm / 45 mm from ML ends; Optional: one or multiple RIs at coded distances |
| Max Traversing Speed | 1 m/s (factor 1,2,5,10); 0.5 m/s (factor 25); 0.4 m/s (factor 50) |
| Required Moving Force | < 5 N (with sealing lips) |
| Protection (IEC 529) | IP64 (with compressed air) |
| Weight | 0.4 kg + 2.8 kg/m |
| Operating Temperature | 0…+50°C |
| Storage Temperature | –20…+70°C |
| Permissible Vibration (40–2000 Hz) | ≤ 150 m/s² |
| Permissible Shock (11 ms) | ≤ 300 m/s² |
