Frameless Direct Drive Torque Motors

Compact, Fully-integrated motor with improved dynamic performance.

Widely used for applications like Gimbals, Robot arms, Index tables and many such high precision applications, Torque motors from Pranshu comes with Large through holes and low profile motors.

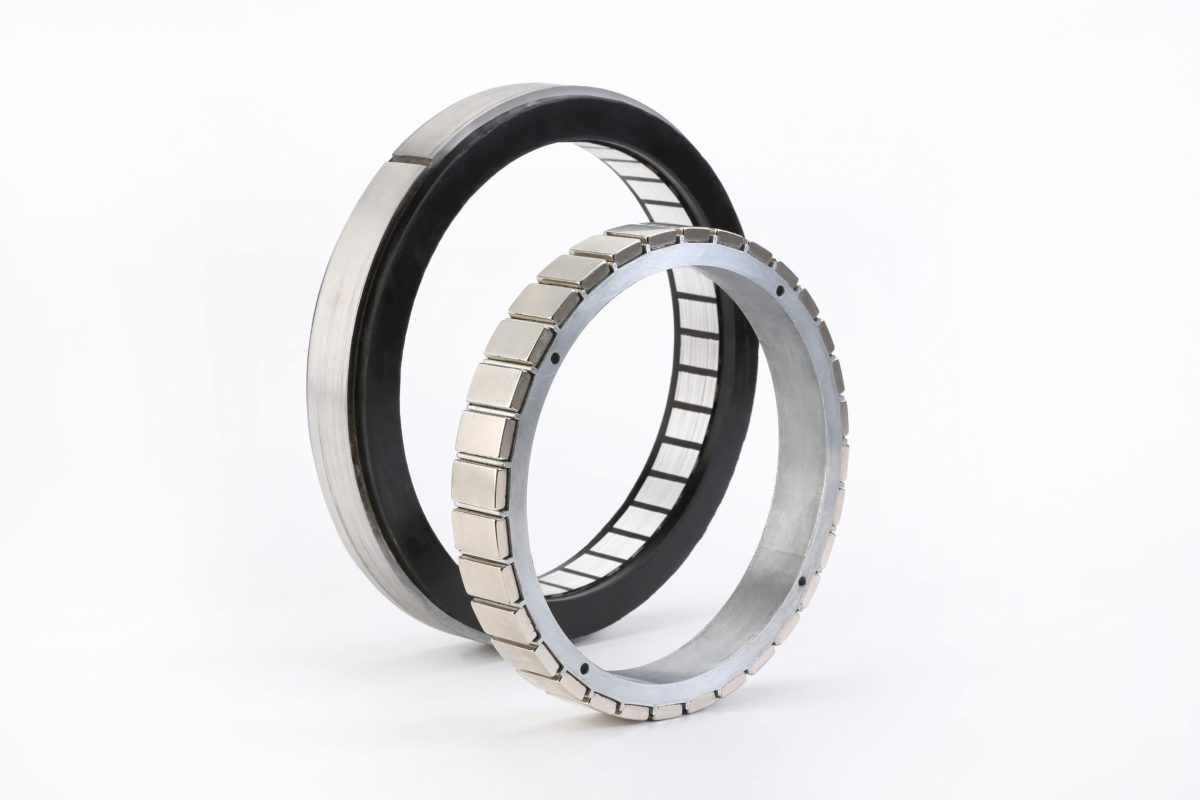

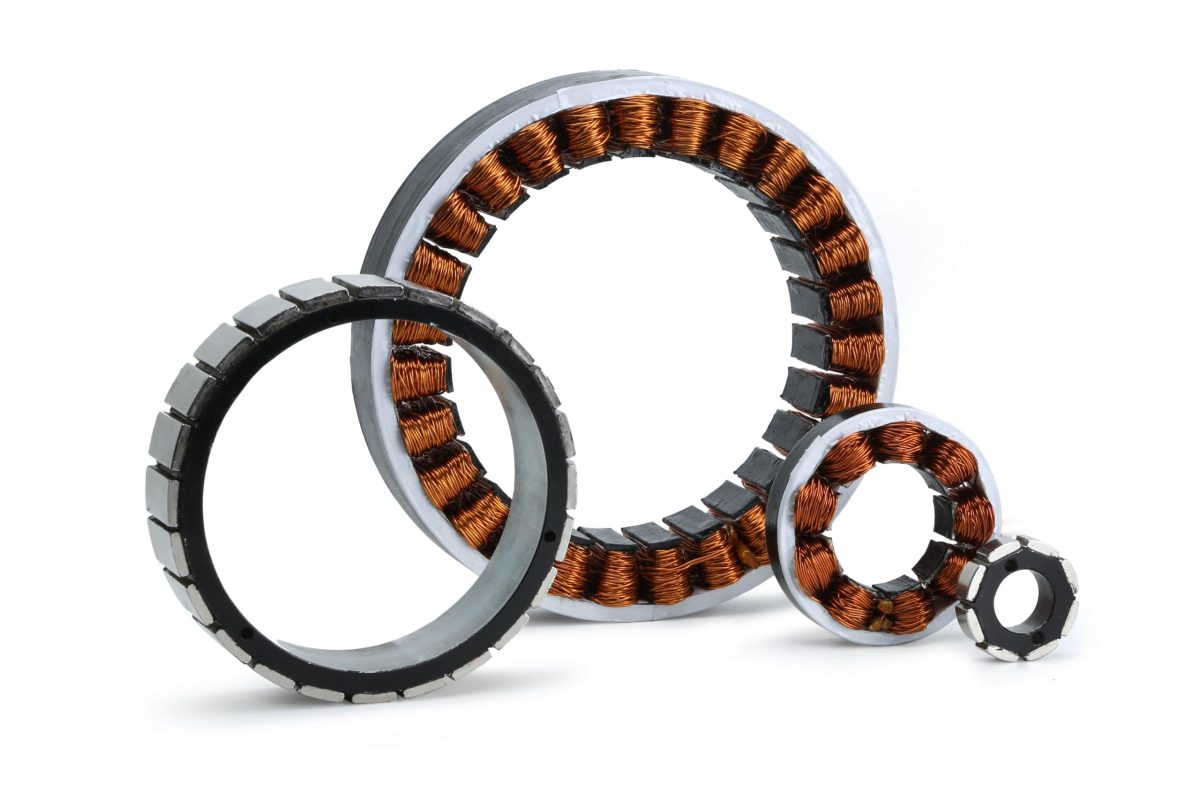

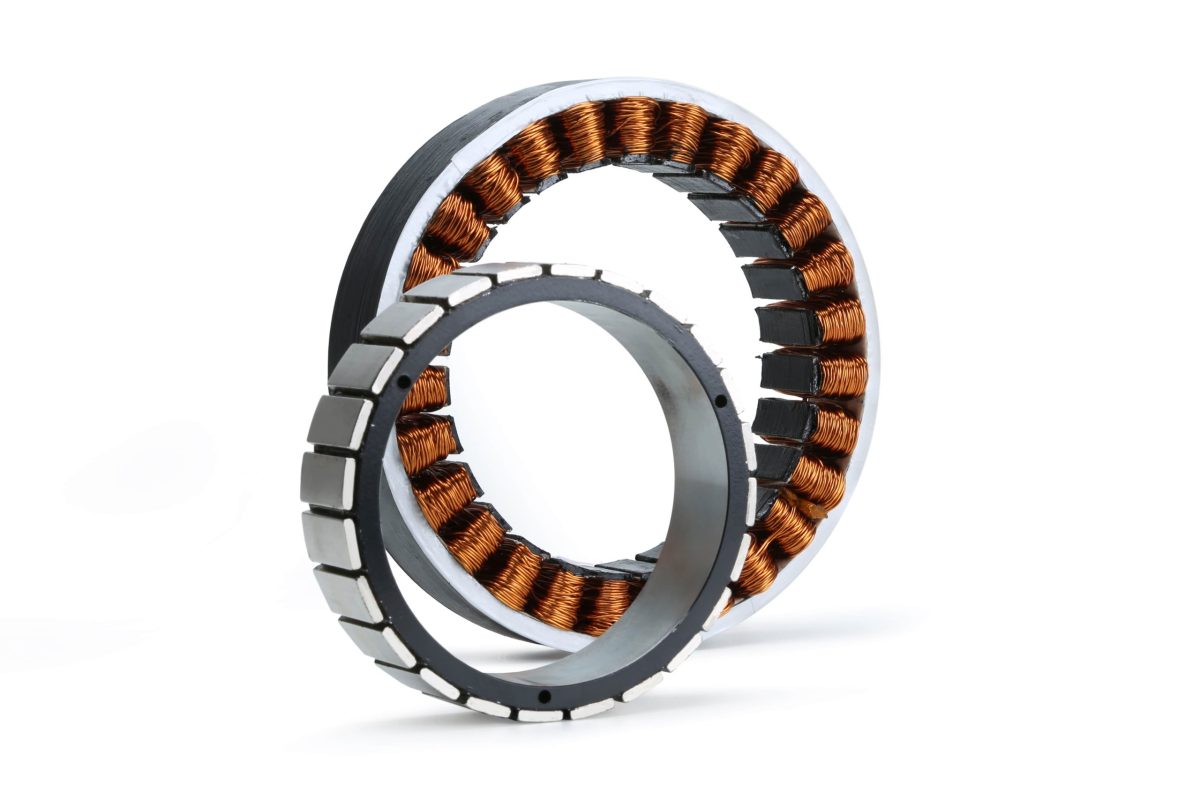

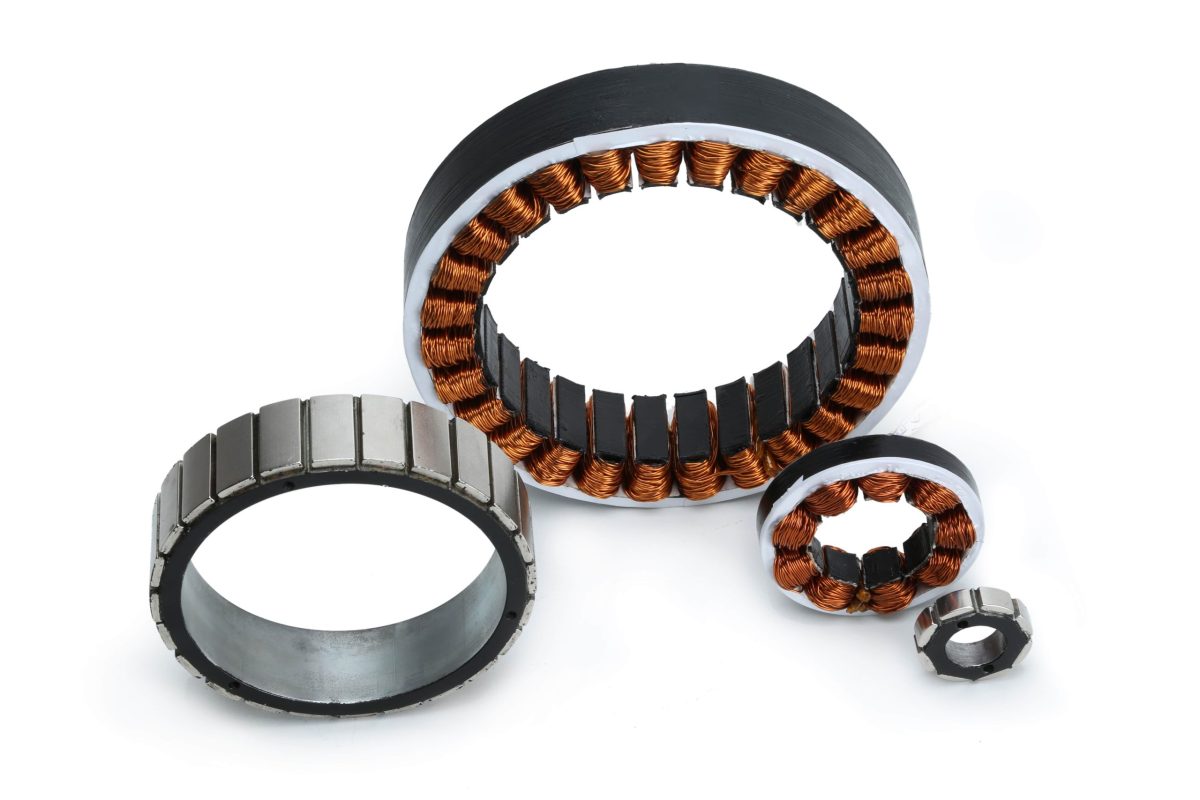

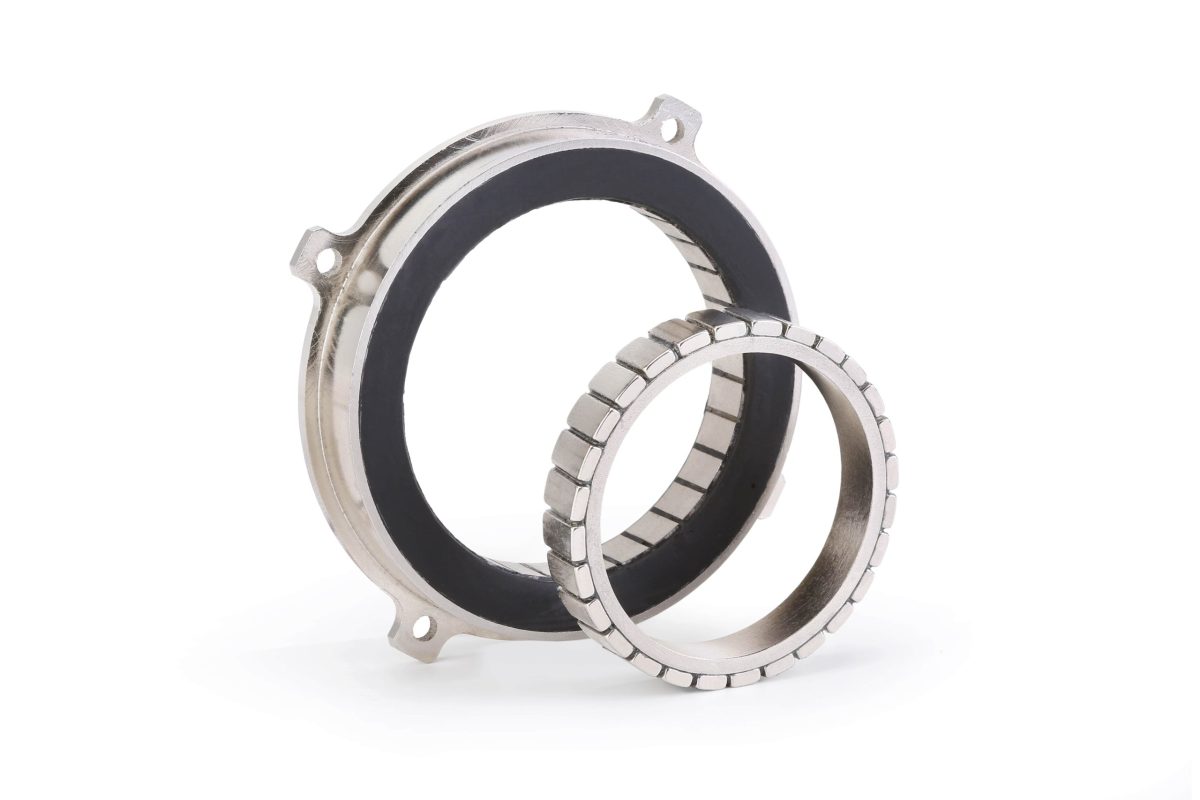

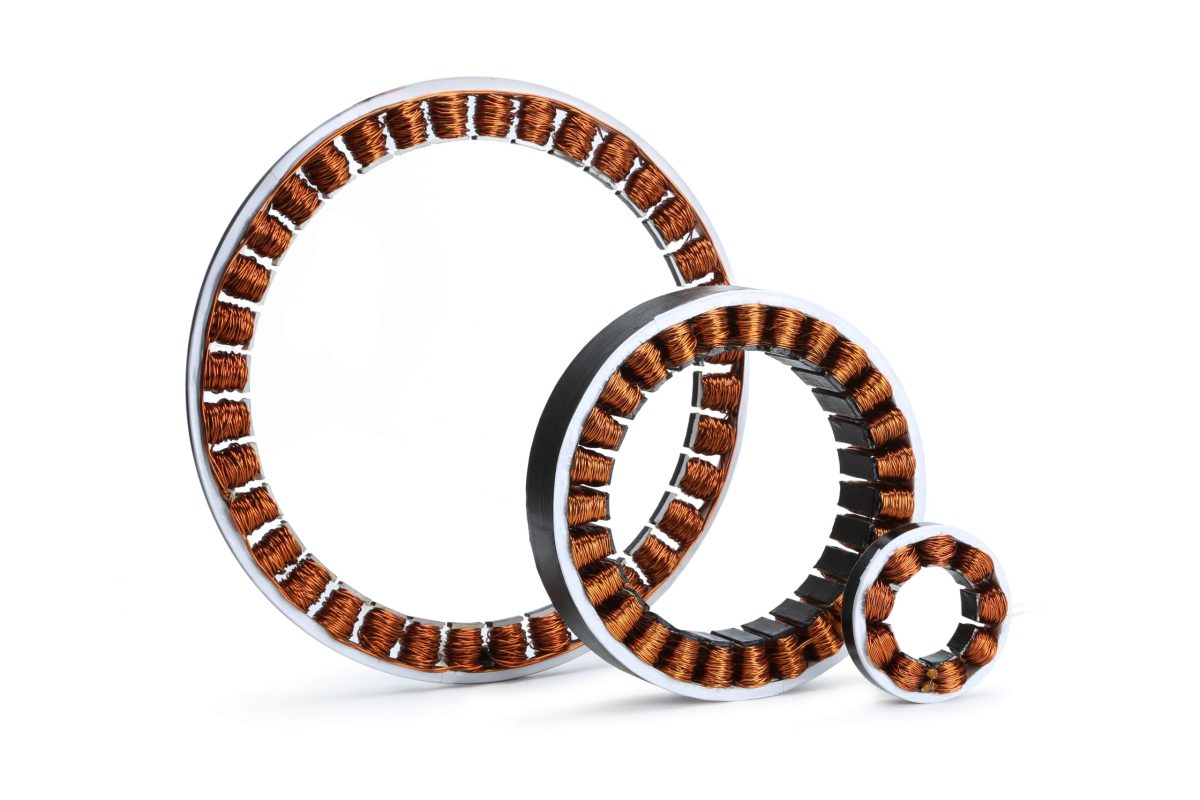

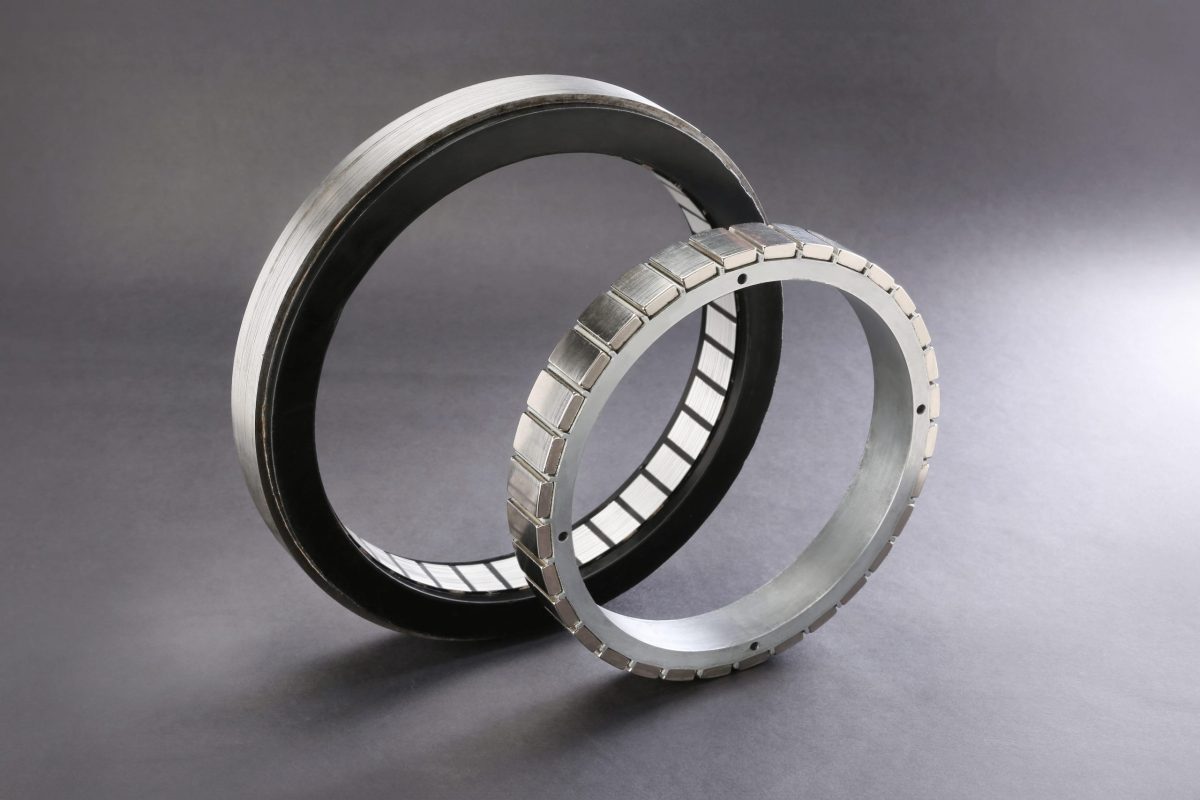

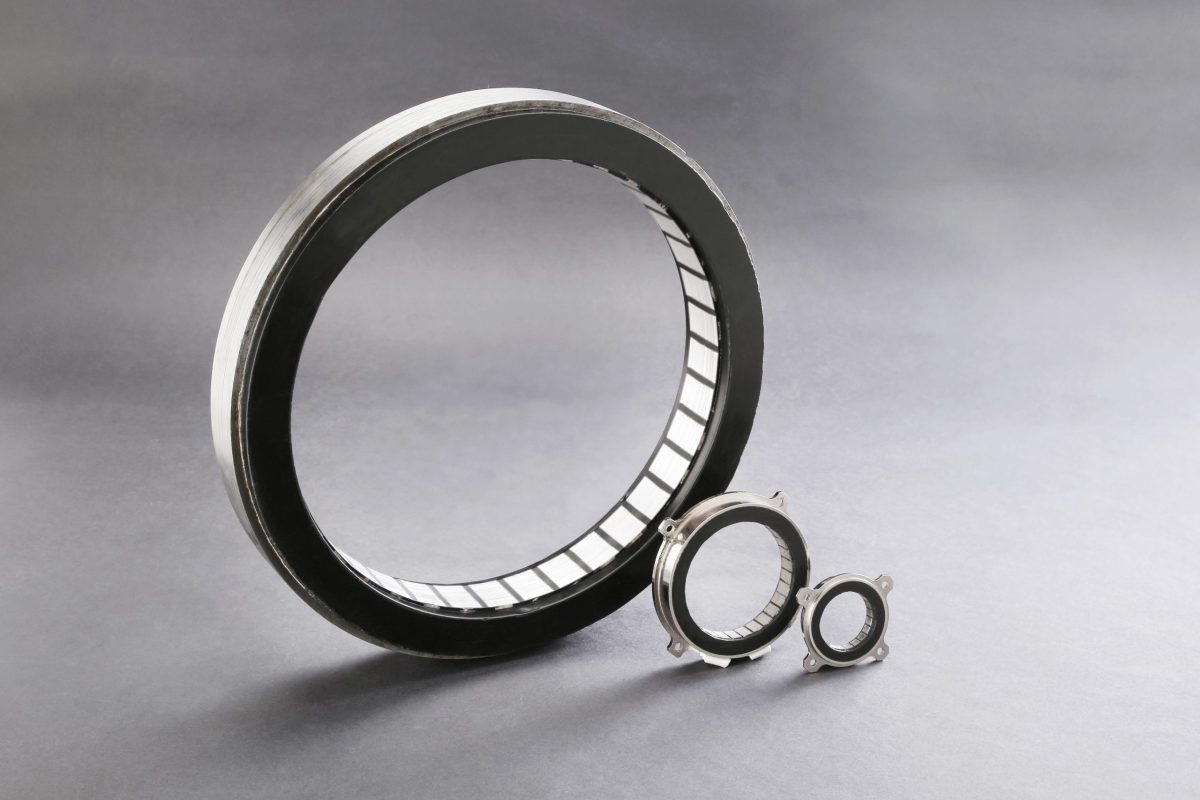

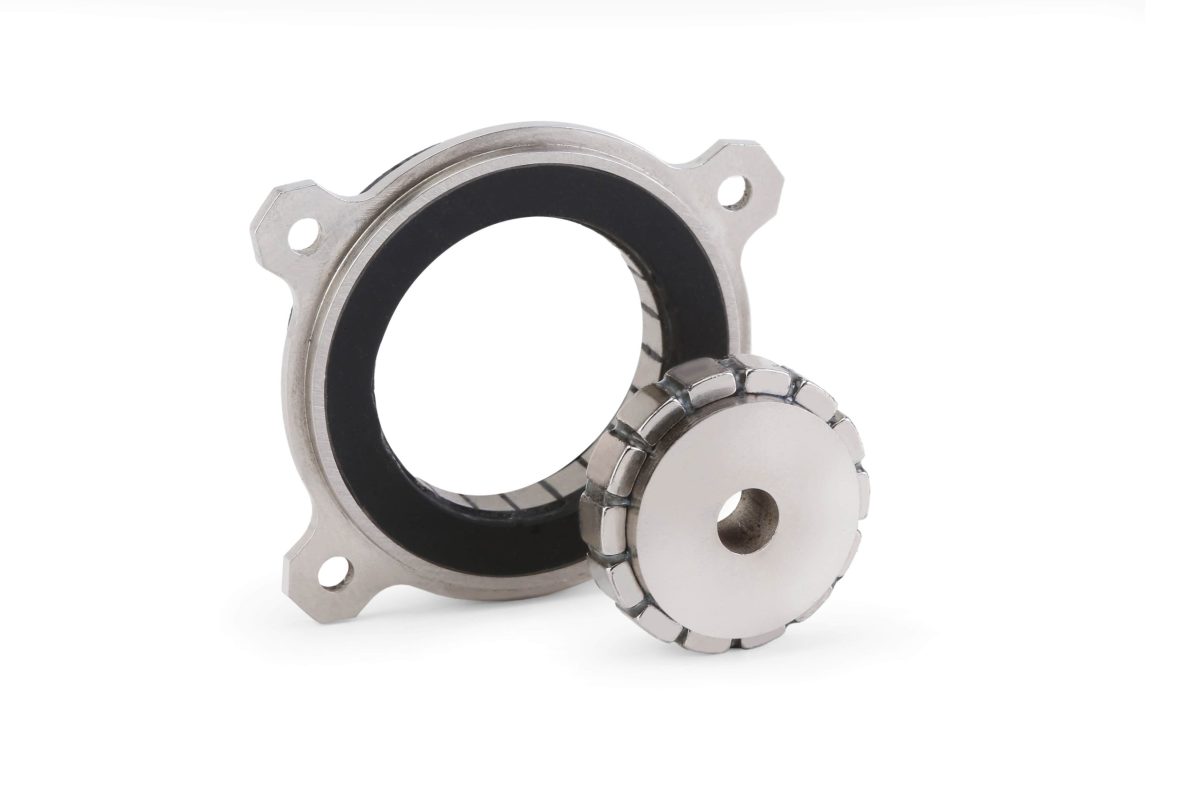

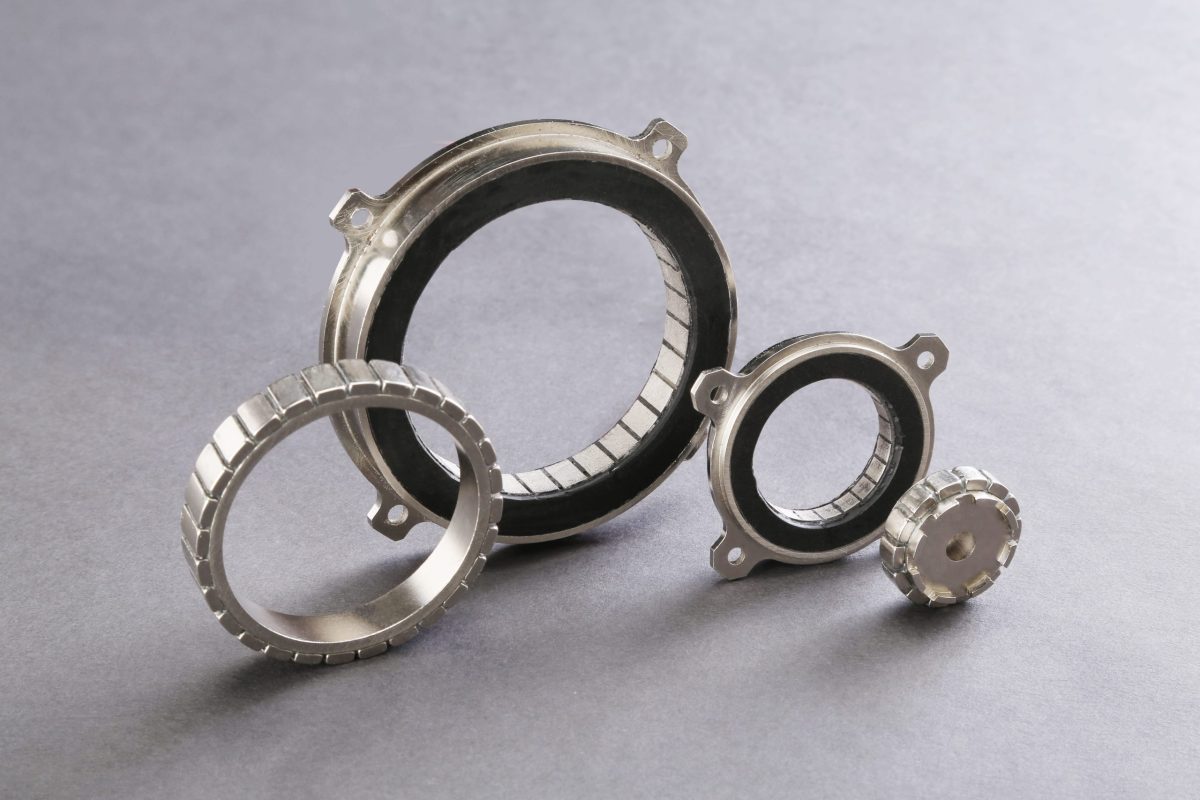

Frameless torque motors consist of a separate rotor and stator which are assembled directly inside the machine. The rotor and stator can be modified to match your machine and the motor winding can be customized to adapt the motor speed to the application.

Compact, precise, and smooth motion are key features of these motors.

Product Details

Electrical Specifications	Unit	T-I-065-18- 07-N-AB	T-I-100-25- 12-N-AB	T-I-100-60- 40-N-AB	T-I-152-38- 93-N-AB	T-I-230-35- 130-N-AB	T-I-410-45- 235-N-AB
Continuous Torque	Nm	0.25	1	4	8	16	70
Continuous Current	A	2.9	5	7	5.5	11	28
Phases		3	3	3	3	3	3
Kt (Torque Constant)	Nm /Amp	0.086	0.2	0.57	1.454	1.45	2.5
Ke (Voltage Constant)	V/Krpm	7	12	40	93	130	235
Km (Motor Constant)	Nm/√𝑊	0.075	0.26	0.75	1.26	1.96	7.21
Resistance	Ohm	1.322	0.58	0.576	1.33	0.548	0.12
Poles		8	12	12	24	48	64
Mechanical Specifications
Stator OD	mm	65	100	100	152	230	410
Stator ID	mm	35	65	65	108	184.5	332
Rotor OD	mm	33.3	63	63	106.5	183	330
Rotor ID	mm	17	38	38	89	155	290
Air Gap	mm	0.85	1	1	0.75	0.75	1
Total Length	mm	18	25	60	38	35	45
Stator Core Length	mm	10	10	40	26	22	25
Weight	kg	0.25	0.6	1.8	1.9	3	12
