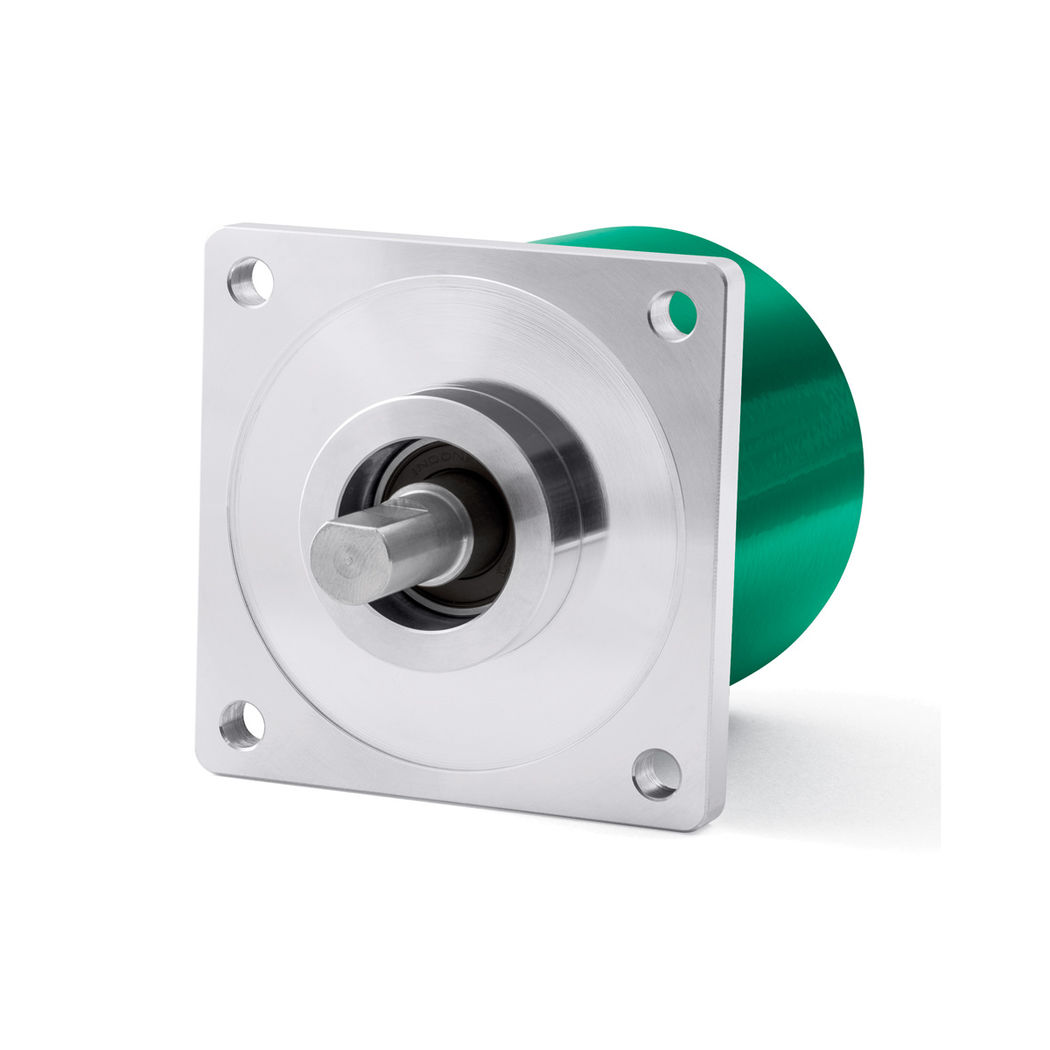

AST 6
US standard optical encoders
Robust die-cast housing
M23 and MIL connector
Singleturn up to 18 bit (262144 cpr) and multiturn up to 16×14 bit (65536 x 16384)
High degree of protection
IP66 BCD output code on request
| Output/Interface | SSI, Bit parallel Push-Pull, NPN |
| Dimension | Ø 65 mm |
| Shaft Ø max | 12 mm |
| Connections | M23 or MIL connector, MIL32 inline plug, cable output |
| Resolution | Singleturn 18 bit, multiturn 65536 cpr x 16384 turns (16 x 14 bit) |
| Protection | IP66 |
| Shaft rotational speed | 6000 rpm |
