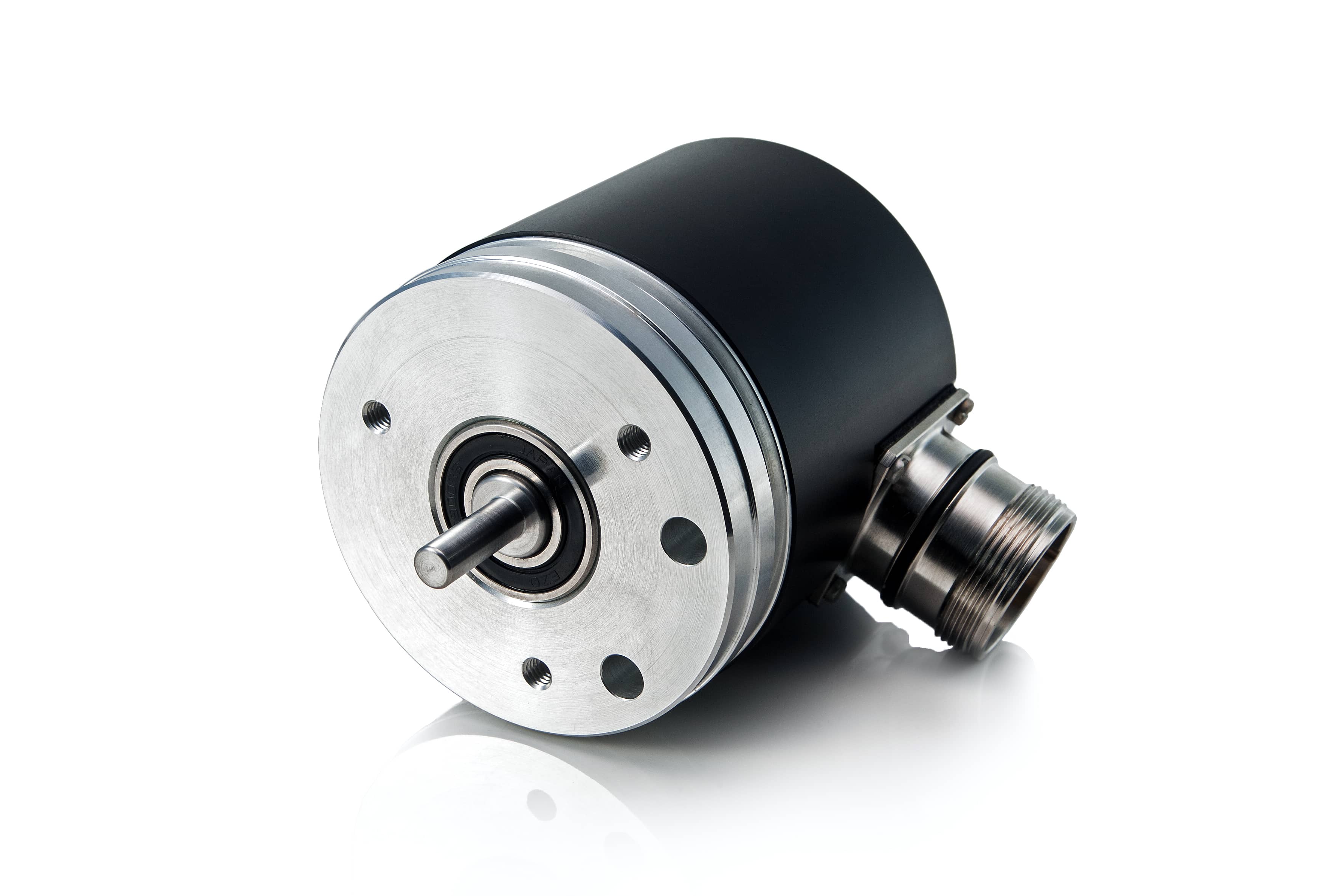

AK58 optical absolute encoder

Ø58mm AK58 Absolute Encoder Series

The AK58 series offers high-precision photoelectric absolute encoders in Ø58mm format, available in six models: AK58M, AK58B, AK58C, AK58C2, AK58C3, and AK58D.

These encoders support SSI and BiSS serial interfaces, delivering up to 21-bit single-turn and 24-bit multi-turn resolution with binary or Gray code output, making them ideal for industrial automation, robotics, and motion control applications.

Key Features:

  • Ø58mm absolute single-turn and multi-turn encoders

  • SSI and BiSS serial interfaces

  • Up to 21-bit single-turn and 24-bit multi-turn resolution

  • Binary or Gray code output for flexible integration

Mechanical data

Maximum shaft speed 12000 rpm
Maximum shaft load axial: 10 N
radial: 20 N
Starting torque at 20°C < 0.01 Nm
Rotor moment of inertia < 15 gcm²
Protection (IEC 529) IP65
Maximum weight without cable 0.3 kg
Operating temperature singleturn: -20…+80°C
multiturn: -10…+70°C
Storage temperature singleturn: -30…+90°C
multiturn: -20…+80°C
Maximum humidity (non-condensing) 98%
Permissible vibration (55 to 2000 Hz) ≤ 100 m/s²
Permissible shock (11 ms) ≤ 1000 m/s²
