Ø200mm incremental encoder

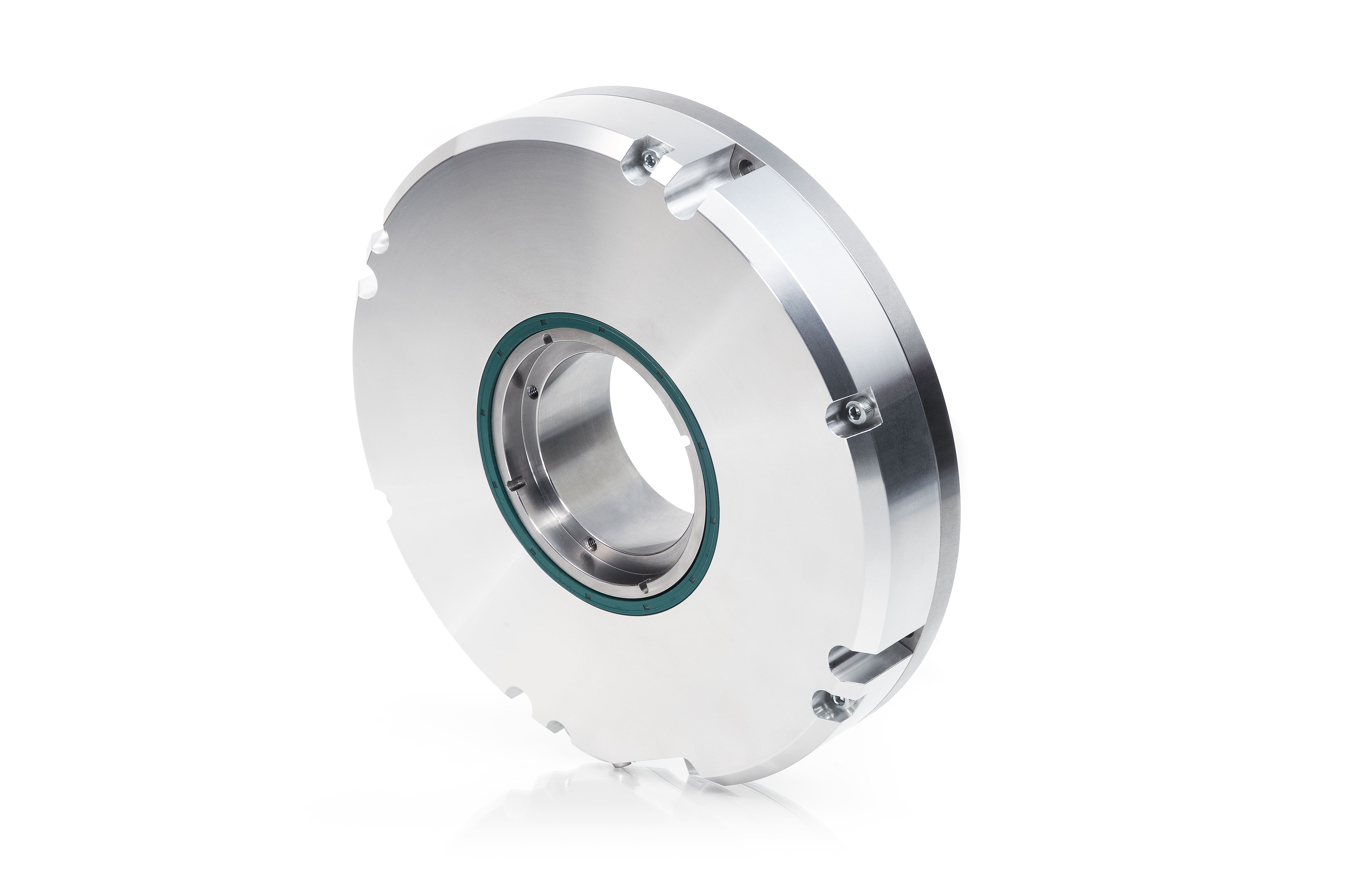

Optical angle encoder A200H is the most sophisticated encoder in our product range. It is capable of producing up to 3.600.000 output pulses per revolution and has an accuracy of up to ±2.0 arc. sec. Also, it has a 60 mm shaft hole diameter, which sets it apart from other encoders.



Mechanical data

Number of output pulses per revolution 3600000
Line number on disc (z) 36000
Reference signal standard: 1 per shaft revolution
distance coded: 72 per shaft revolution
Permissible mech. speed ≤ 1000 rpm
Max. operating speed 300 to 500 rpm
Accuracy grades ± 2.0 arc. sec
Permissible shaft runout axial: 0.02 mm
radial: ± 0.02 mm
Starting torque at 20°C ≤ 0.5 Nm
Rotor moment of inertia < 0.9×10-3 kgm2
Protection (IEC 529) IP64
Maximum weight without cable 4.5 kg
Operating temperature 0…+70°C
Storage temperature -30…+85°C
Maximum humidity (non-condensing) 98%
Permissible vibration (55 to 2000 Hz) ≤ 100 m/s²
Permissible shock (11 ms) ≤ 300m/s²
