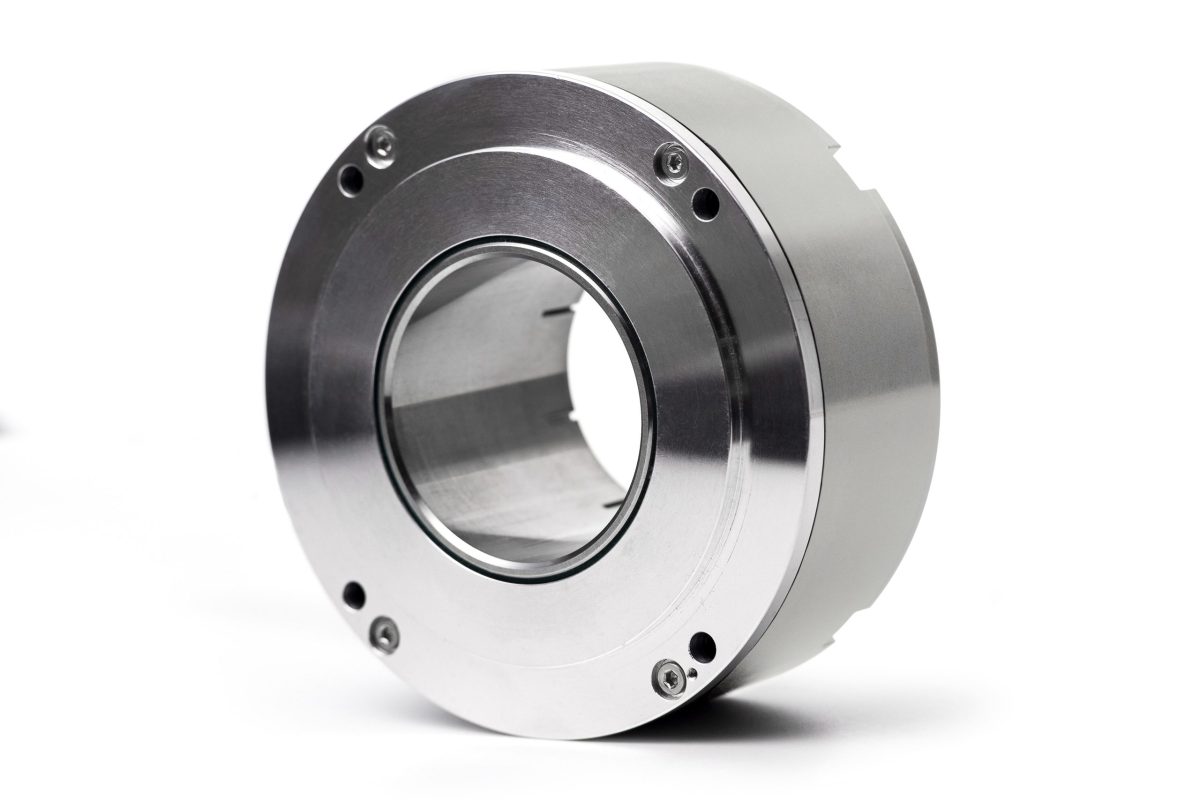

A110H incremental encoder
Ø110mm incremental encoder
A110H is an optical hollow shaft angle encoder that produces up to 1.800.000 output pulses per revolution and has an accuracy of ±5 arc. sec.
Mechanical data
Number of output pulses per revolution | 18000-1800000 |
Line number on disc (z) | 18000 |
Reference signal | standard: 1 per shaft revolution distance coded: 36 per shaft revolution |
Permissible mech. speed | ≤ 3000 rpm |
Max. operating speed | 600 to 1000 rpm |
Accuracy grades | ± 5.0 arc. sec |
Permissible shaft runout | axial: 0.02 mm radial: ± 0.05 mm |
Starting torque at 20°C | ≤ 0.008 Nm |
Rotor moment of inertia | < 0.6×10-4 kgm2 |
Protection (IEC 529) | IP64 |
Maximum weight without cable | 1.2 kg |
Operating temperature | 0…+70°C |
Storage temperature | -30…+85°C |
Maximum humidity (non-condensing) | 98% |
Permissible vibration (55 to 2000 Hz) | ≤ 100 m/s² |
Permissible shock (11 ms) | ≤ 300m/s² |
