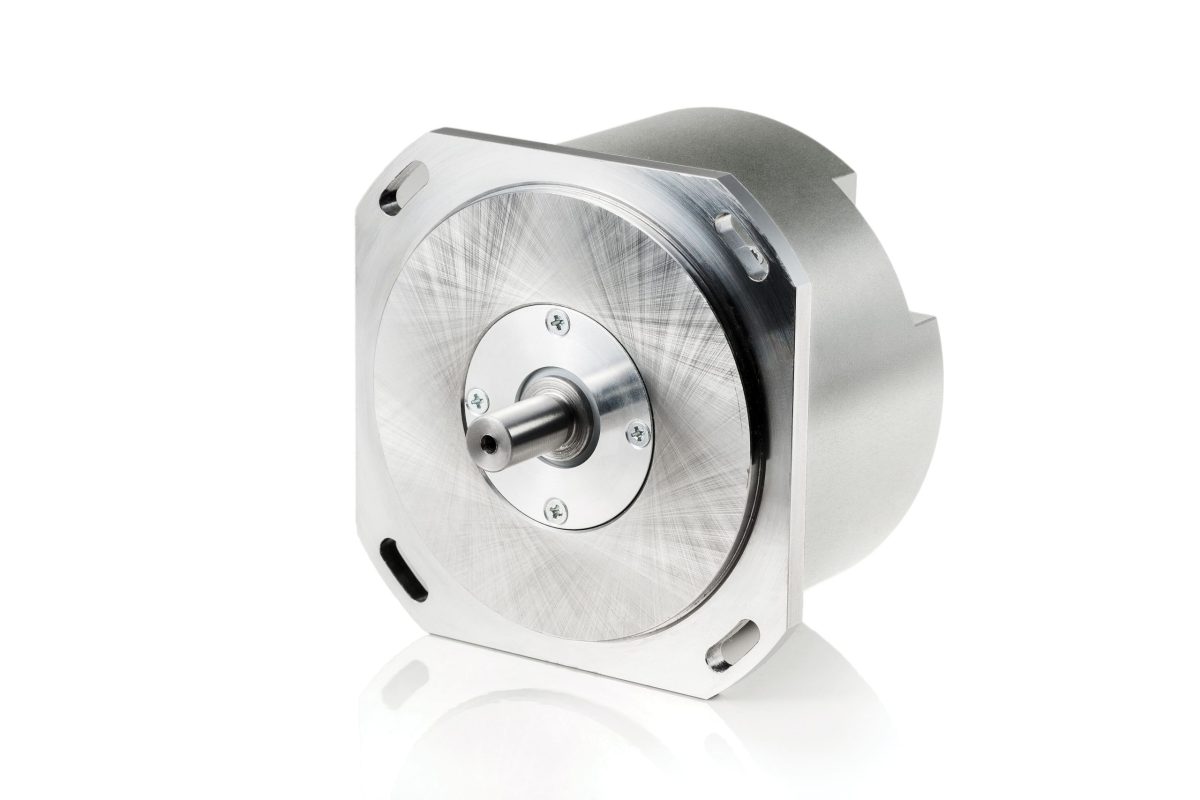

The A110 is a high-end optical incremental encoder with a solid shaft. It delivers precise position feedback for demanding industrial applications. The encoder produces up to 1,800,000 output pulses per revolution and supports an optional distance-coded reference mark for advanced applications.

Key Features:

• Solid shaft optical encoder, Ø110 mm

• Output: 18,000–1,800,000 pulses per revolution

• Reference signal: standard 1 per shaft rev; optional 36 per rev distance-coded

• Accuracy: ±5 arc-sec

• Maximum shaft speed: 5000 rpm

• Maximum shaft load: axial 10 N, radial 10 N

• Starting torque: ≤ 0.01 Nm

• Rotor moment of inertia: < 20×10⁻⁶ kg·m²

• Protection: IP64

• Operating temperature: 0…+50°C; Storage: -30…+80°C

• Permissible vibration: ≤ 100 m/s²; shock: ≤ 300 m/s²

• Weight (without cable): 0.7 kg

Applications:

• Industrial motion control systems

• Robotics and automation

• Servo motor feedback

• Precision machinery
