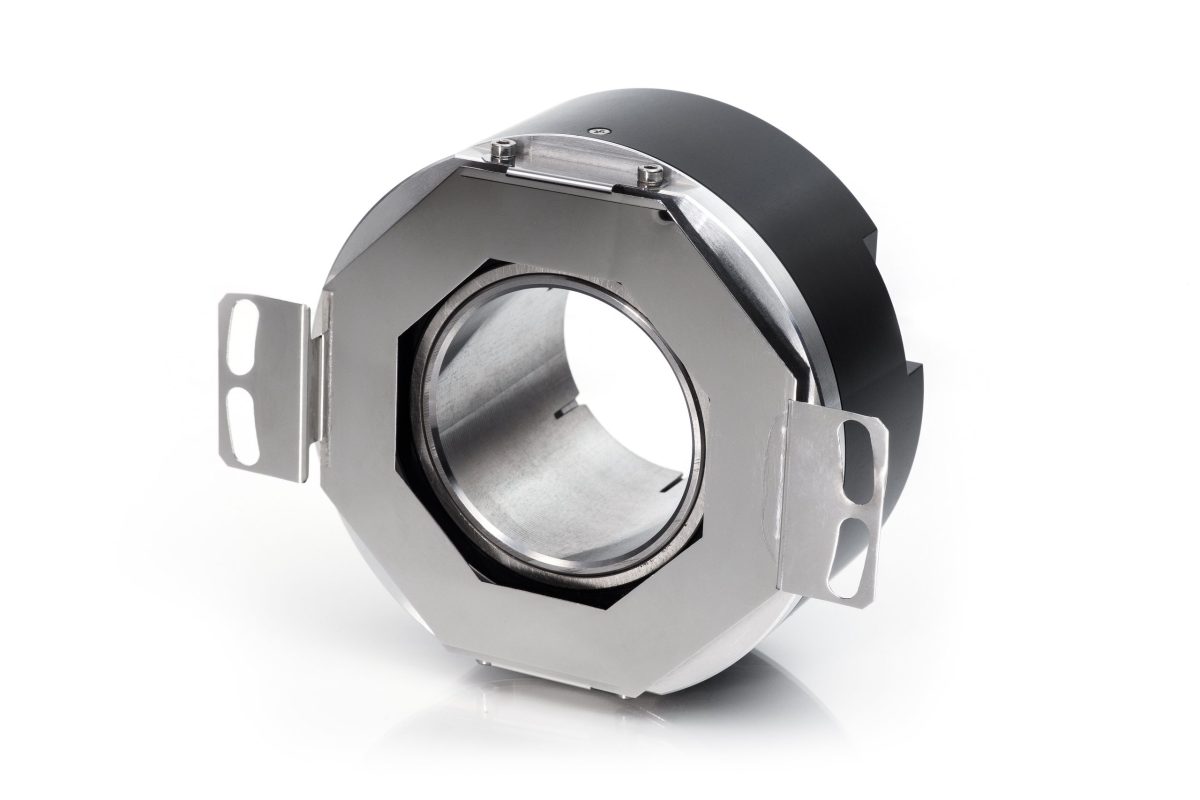

Ø102mm incremental encoder

Photoelectric rotary encoder A102H contains 5.000 lines on disc in a standard version, but other modifications are possible on request. This wide diameter encoder has the biggest shaft available on our rotary encoders product range.

Mechanical data

Number of output pulses per revolution 5000 – 500000
Line number on disc (z) 5000
Maximum shaft speed 8000 rpm
Maximum shaft load axial: 1.00 mm
radial: 0.02 mm
Accuracy (T1-period lines on disc in arc. sec) ± 0.05T1 arc. sec
Starting torque at 20°C ≤ 0.01 Nm
Rotor moment of inertia < 20 x 10-4 kgm2
Protection (IEC 529) IP64
Maximum weight without cable 0.8 kg
Operating temperature  -20…+70°C
Storage temperature  -30…+85°C
Maximum humidity (non-condensing) 98%
Permissible vibration (55 to 2000 Hz) ≤ 100 m/s²
Permissible shock (11 ms) ≤ 300 m/s²
